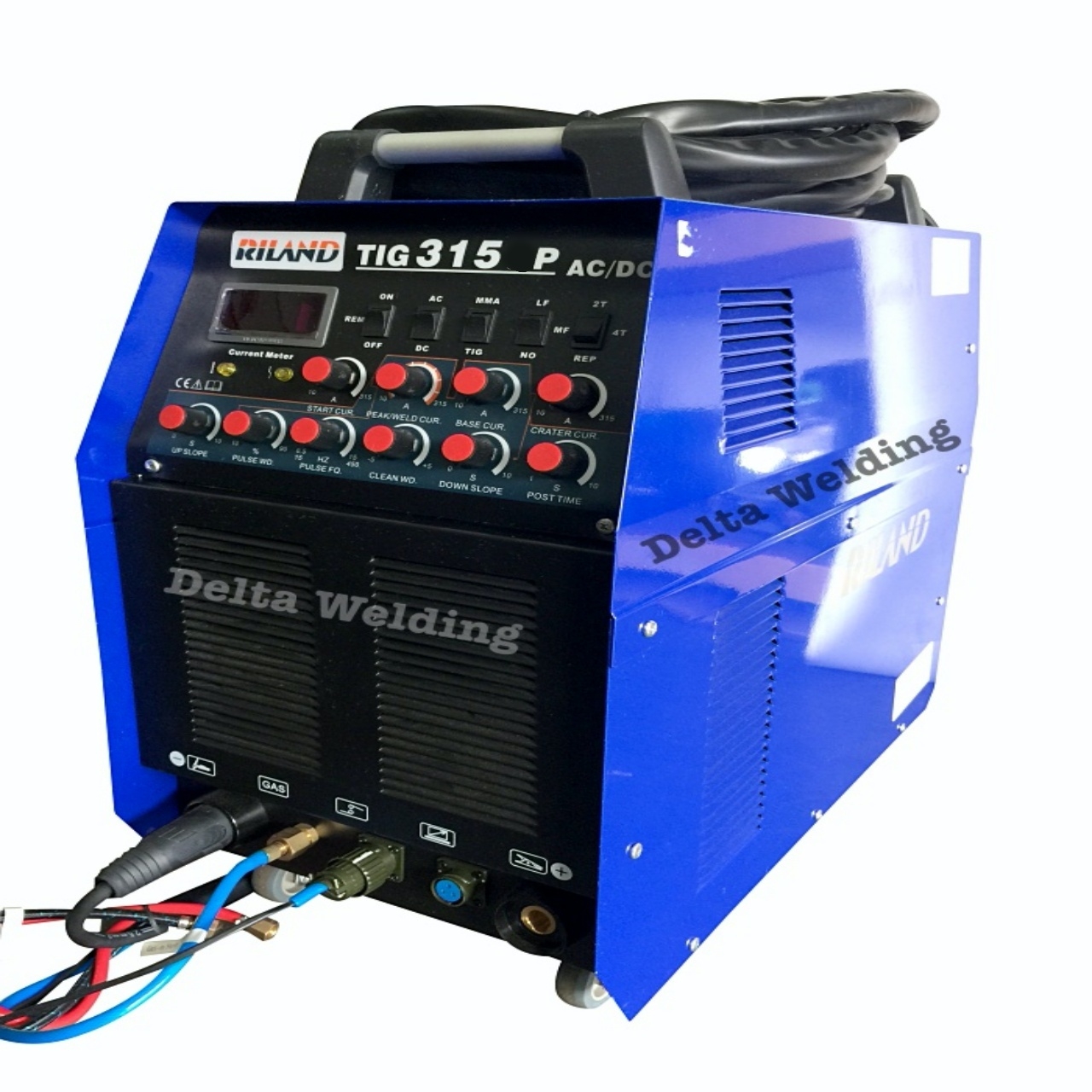

DELTA RILAND 315 ACDC Inverter Machine Welding Malaysia
Advantages :
-Our new ACDC TIG 315 is the upgraded Heavy Duty GTAW Welding machine which delivers Quality TIG performance.
- It's Inverter Technology consists of 3 Welding Process ( TIG AC / TIG DC / MMA Stick )
-Has an Automatic Hot Start boosts of the current during starting to make striking an arc easier.
- Function of 2T/4T as well as Repeat Function Knob on the front panel.
-Digital Panel which shows the Welding Current
-Saves Energy as compared to the Traditional TIG machine .
-Auto-Protection against over-voltage,over-current and over-heated.
Specifications:
|
Delta Welding Malaysia RILAND ACDC TIG 315 |
|
|
Input Power (V) |
3 Phase AC415V |
|
Arc-Initiating(TIG) |
H-F |
|
Rated Input Current(A) |
TIG:13.5 MMA:19.6 |
|
Efficiency(%) |
85 |
|
Input Frequency (HZ) |
50/60 |
|
Power Factor |
0.93 |
|
Rated Input Power(KVA) |
TIG:8.9 MMA:12.9 |
|
Protection Grade |
IP21 |
|
Open Circuit Voltage(V) |
54 |
|
Weight(Kg) |
39 |
|
Current Range(A) |
10-315 |
|
Duty cycle at maximum current |
60@25℃ |
|
Dimension(mm) |
616*326*620 |
