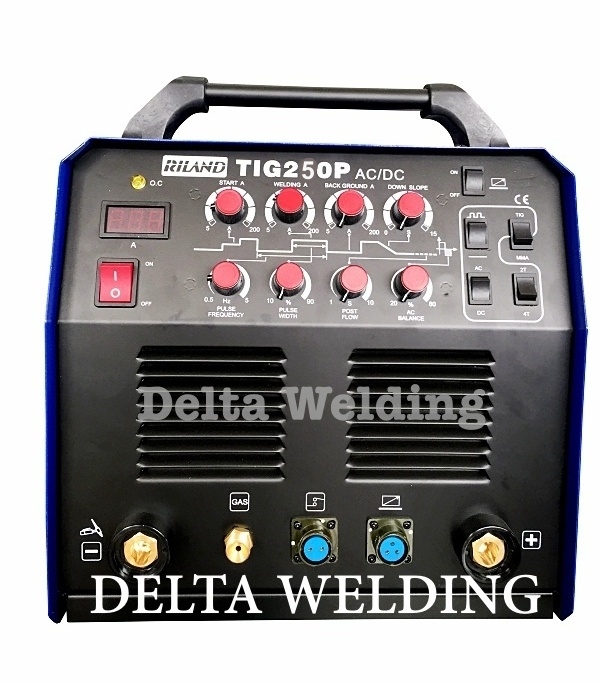

DELTA RILAND 250P ACDC Aluminium INVERTER WELDING MACHINE
Advantages :
-Advanced inverter technology delivers superior tig performance
-Untouch start DC tig operation allows you to strike the arc easily with high frequency and makes it easy to establish an arc under a variety of conditions
-Pulse width, Pulse frequency, AC Balance, Up Slope and down slope function adjustable
-Automatic hot start boosts the current during starting to make striking an arc easier.
Other Functions:
-2T and 4T and repeat function selectable on the front panel
-Remote control function ready! remotely controlling your current level with a food control
-Auto Reconnect- Tig 200P updated version. For single phase 110V or 220V50/60HZ input power
-Energy saving- Compared with the traditional Tig machine more efficient
Specifications :
|
DELTA WELDING (M) SDN BHD MODEL : 250P ACDC INVERTER TIG WELDING MACHINE |
|
|
Power Voltage |
1 phase (AC220) |
|
Frequency |
50/60 |
|
Rated input current (A) |
TIG : 36.5 MMA:35.4 |
|
Output current (A) |
TIG 10-210 MMA: 10-160 |
|
No.Load voltage (V) |
TIG : 68 MMA: 60 |
|
Rated Output Voltage (V) |
TIG : 18.4 MMA:26.4 |
|
AC Duty Cycle (%) |
20-80 |
|
Pulse Duty Cycle (%) |
10-90 |
|
Post -flow time (s) |
1-10 |
|
Pulse Frequency (Hz) |
0.5-5.0 |
|
Down Slope Time (S) |
0-10 |
|
Duty Cycle (%) |
30 |
|
Insulation Grade Protection Grade |
F IP21 |
|
Weight excluding packing / accessories (KG) Dimensions (mm) excluding packing / accessories |
20 476 x 340 x 402 |
